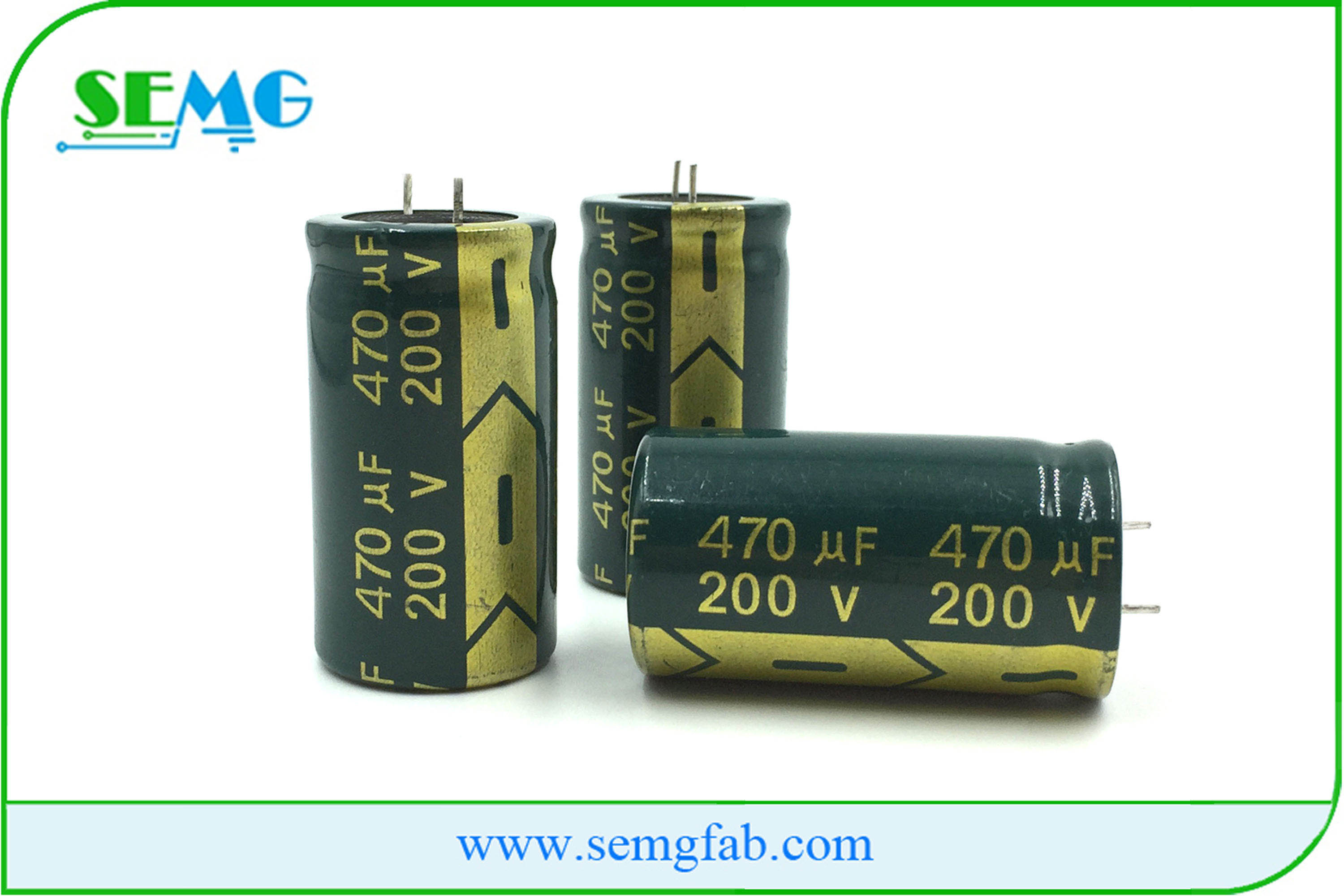

Features
*Suitable for Smoothing circuit ,TV/Monitor ,Adapter ,SMPS
*High-temperature resistance&High frequency ripple current
*OEM&ODM order *High quality with competitive price
*Certification: ROHS/REACH
Specifications
Item
Characteristics
Temperature
-40~+85°C
-25~+85°C
Voltage
10~100VDC
160~500VDC
Capacitance
820~12000μF
47~2200μF
Leakage Current (max 20°C)
I≤0.02CV or 3(μA) whichever is smaller
(After rated voltage applied for 5minutes)
Capacitance Tolerance
±20% at 120Hz, 20°C
DissipationFactor (tanδ)
Dissipation Factor (tanσ)shall not exceed the values showed in the table of standard rating.
Load Life
After applying rated voltage with rated ripple current for 2000hrs at 85°C,the capacitor shall meet the following requirement.
Capacitance Change
Within ±20% of initial value
Dissipation Factor
Not more than 200% of the specified value
Leakage Current
No more than the specified value
Shelf Life
After placed at 85°C. Without voltage applied for 1000hours ,the capacitor shall meet the same requirements as endurance.
